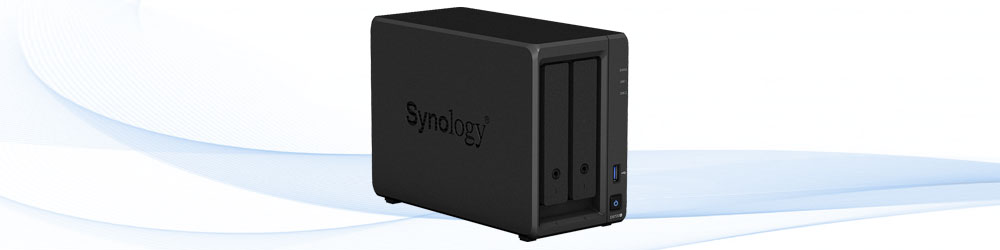

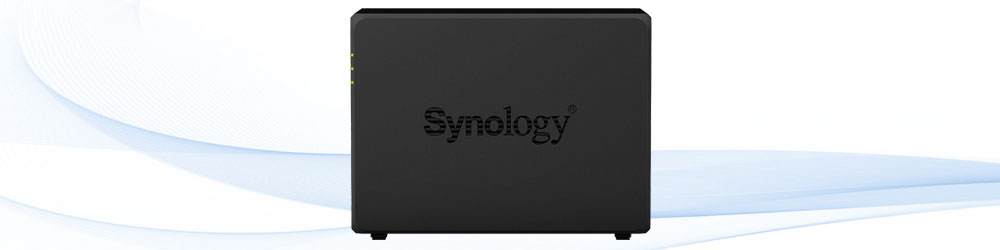

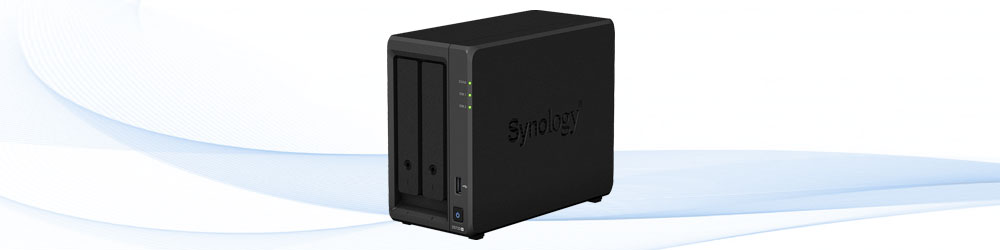

Synology DS720+ is a compact network-attached storage solution to streamline data and multimedia management. Two built-in M.2 SSD slots and Synology SSD Cache technology allow you to boost system I/O and application performance. Scalable storage design lets you start small and expand storage capacity with Synology DX517 as your data grows.
CPU | |
---|---|
CPU Model | Intel Celeron J4125 |
CPU Quantity | 1 |
CPU Architecture | 64-bit |
CPU Frequency | 4-core 2.0 (base) / 2.7 (burst) GHz |
Hardware Encryption Engine (AES-NI) | |
Memory | |
System Memory | 2 GB DDR4 non-ECC |
Total Memory Slots | 1 |
Maximum Memory Capacity | 6 GB (2 GB + 4 GB) |
Notes |
|
Storage | |
Drive Bays | 2 |
Maximum Drive Bays with Expansion Unit | 7 (DX517 x 1) |
M.2 Drive Slots | 2 (NVMe) |
Compatible Drive Type* |
|
Maximum Single Volume Size* | 108 TB |
Hot Swappable Drive | |
Notes |
|
External Ports | |
RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
USB 3.2 Gen 1 Port* | 2 |
eSATA Port | 1 |
Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. |
File System | |
Internal Drives |
|
External Drives |
|
Appearance | |
Size (Height x Width x Depth) | 166 mm x 106 mm x 223 mm |
Weight | 1.51 kg |
Others | |
System Fan | 92 mm x 92 mm x 1 pcs |
Fan Speed Mode |
|
Brightness adjustable front LED indicators | |
Power Recovery | |
Noise Level* | 18.4 dB(A) |
Scheduled Power On/Off | |
Wake on LAN/WAN | |
Power Supply Unit / Adapter | 65W |
AC Input Power Voltage | 100V to 240V AC |
Power Frequency | 50/60 Hz, Single Phase |
Power Consumption* |
|
British Thermal Unit |
|
Notes |
|
Temperature | |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
Certification |
|
Warranty | 3-year hardware warranty, extendable to 5-year coverage - EW201 |
Notes | The warranty period starts from the purchase date as stated on your purchase receipt. |
Environment | RoHS Compliant |
Packaging Content |
|
Optional Accessories |
|
Notes | All memory modules will operate at the maximum frequency specified by the CPU manufacturer. |
For additional information, download the Synology DS720+ datasheet.
